Person-Centered Clinical Analytics: A Walkthrough for Medical Learners and Analysts

A hands-on tour of a synthetic Type 1 vs. Type 2 diabetes demo — what it is, how to run it, and what it can teach you about analyzing patients instead of diagnoses.

---

1. The idea in one sentence

Most clinical dashboards start from a diagnosis and ask "how are my T2D patients doing?" This project starts from the person and asks a different question: what if every patient — regardless of disease — was represented as the same shape of graph, so that comparing across diseases, cohorts, or facilities becomes a matter of re-slicing one dataset instead of building a new report each time?

That shape is a simple, four-stage chain repeated for every patient:

Observations → Diagnosis → Interventions / Plan → Outcomes

Every tool in this project reads and re-presents that same graph. Nothing about the underlying data structure changes between a Type 1 diabetes patient and a Type 2 diabetes patient — only the values on the nodes differ. If that sounds unremarkable, it's the point: the interesting engineering question isn't "can I build a T1D dashboard and a T2D dashboard," it's "can I build one dashboard that doesn't know or care which disease it's looking at."

2. Why T1D vs. T2D is a good stress test

T1D and T2D are both "diabetes" in casual conversation, but as data-generating processes they look almost nothing alike:

That contrast is deliberate. If a single graph schema and a single set of rendering functions can honestly represent both an acute-spike disease and a slow-branching disease without special-casing either one, that's reasonably strong evidence the model generalizes — which matters if you ever wanted to extend it beyond diabetes.

3. Under the hood: the graph schema, in full

The "one shape for every patient" claim in Section 1 rests on a specific knowledge-graph schema. It's worth seeing the whole thing before the walkthrough, because Steps 2–6 are really just five node types and five edge types, read and re-rendered five different ways.

The five edges carry the clinical logic — note that comorbidities and raw observations can each independently push back on the intervention, not just feed forward into it:

• (Observation) -[:SUGGESTS]-> (Diagnosis)
• (Diagnosis) -[:INDICATES_PLAN]-> (Intervention)
• (Intervention) -[:PRODUCED_OUTCOME]-> (Outcome)
• (ComorbidityDiagnosis) -[:MODULATES]-> (Intervention)
• (Observation) -[:CONSTRAINS]-> (Intervention)

Time itself is modeled as a property on the edges ({timestamp: t1}, {atemporal_bundle: true}, {time_to_outcome_delta: d}) rather than as a rigid node sequence — that's the actual mechanism behind the Step 3 atemporal/temporal toggle. Flipping the toggle doesn't swap datasets; it just tells the renderer whether to read the timestamp properties on the same edges or ignore them.

4. The three pivot lenses and the comparator framework, in detail

Step 4's "re-anchor without re-loading" is one instance of a more general idea from the concept article: the same person-centered graph supports three interchangeable anchors.

Step 5's comparator matrix is the small, working version of a larger framework the concept article sketches for scaling this beyond one demo cohort to a global population: a population anchor normalized via SNOMED CT, an intervention anchor normalized via LOINC, and a comparator layer that can subgroup by outcome, by intervention detail (dosing, timing), or by time-of-intervention — all further weighted by facility tier (primary/secondary/tertiary/quaternary) and resource gradient (resource-plenty vs. resource-constrained), so that a spike in complications gets flagged as possibly infrastructure-driven rather than silently blamed on the clinical decision. The facility_tier and resource_status tags Step 1 attaches to every synthetic patient exist specifically to make that weighting demonstrable in Step 5 and Step 6.

Worked example, from the concept article: "Show me patients with [disease combo] who received [intervention], filtered by [resource-constrained tertiary facilities], broken down by [temporal time-of-intervention subgroups], and map [my current patient's] trajectory against that specific comparator curve." Step 5's one-click "Load example query" button reproduces a version of exactly this.

5. Where the idea came from: an acute-care pilot first

T1D vs. T2D isn't the project's original test case. The person-centered model was first sketched against ASV (anti-snake-venom) treatment for snakebite envenomation — a single-encounter, acute-care scenario built on an earlier 12-case "Critical Hub Node Navigation" demo, where the interesting comparator question was dosing timing (a "golden hour" ASV administration within 2 hours vs. a delayed one past 6 hours) against a fixed intervention window of days, not years.

The T1D/T2D pilot documented in this walkthrough was deliberately chosen as the second test case because it stresses the model in the opposite direction: instead of one bounded decision window, diabetes management is a decades-long, evolving regimen. Running an acute single-encounter condition and a chronic multi-decade condition through the identical five-node graph schema is a stronger generalization test than either pilot alone — which is exactly what Step 7's audit is checking for.

6. The project as a pipeline, not seven separate tools

The seven build steps form a literal data pipeline — each step downloads a JSON file the next step loads:

Everything runs client-side in the browser (plain HTML/JS, no server, no upload) — you can open each file locally and follow along.

7. Walking through the pipeline

Live links: guided tour · concept article (Part 1) · build log (Part 2)

Step 1 — Corpus generator: synthetic, but structurally honest

Generates FHIR-flavored JSON bundles (Patient, Condition, Observation, MedicationRequest, Encounter) for a small seeded cohort — 9 T1D and 9 T2D patients by default. Each record is tagged with facility_tier, resource_status, and a disease-appropriate timing field.

Try Step 1 live →

What to notice: open one T1D record next to one T2D record. The T1D record has irregular spike events; the T2D record has a slow, staged regimen. That contrast — generated by two genuinely separate, hand-authored generator functions — is the raw material the rest of the pipeline has to handle without cheating.

Step 2 — Graph builder: one schema, five node types

Turns the raw corpus into a knowledge graph with five node types (PatientNode, ObservationNode, DiagnosisNode, InterventionNode, OutcomeNode) connected by relational edges (SUGGESTS, INDICATES_PLAN, PRODUCED_OUTCOME, MODULATES, CONSTRAINS). This is the same function for every patient, T1D or T2D — the disease only shows up as a value on a node, never as a fork in the code.

Try Step 2 live →

Step 3 — Dashboard: atemporal vs. temporal, one toggle

Loads the graph and renders it two ways behind a single toggle:

Try Step 3 live →

• Mode A (Atemporal/Gestalt): strips timestamps, clusters each patient's whole profile.
• Mode B (Temporal trajectory): plots timestamped edges on a shared "years since diagnosis" axis, with spike markers and severity sizing.

What to notice: flip the toggle on a T1D patient and a T2D patient. The same rendering logic produces a spiky trajectory for one and a smooth branching one for the other — because the shape difference lives in the data, not in a disease-specific rendering branch.

Step 4 — Pivot lens: re-anchor without re-loading

Instead of a fixed patient-centric view, you can re-index the same graph around a Disease-centered, Intervention-centered, or combined Disease + Intervention anchor. Switching lenses doesn't reload data — it's a different query over the same graph.

Try Step 4 live →

Step 5 — Comparator filter: build a matched-subgroup query

Three independent filter layers: a population filter (T1D / T2D / all), a disease-appropriate intervention-timing filter, and a comparator matrix (outcome × facility tier × resource status) with a group-by control. There's a one-click "load example query" button that reproduces a worked comparison end-to-end.

Try Step 5 live →

Step 6 — Clinical output view: the honesty layer

Re-presents what Steps 3–5 already established, but organized the way a clinician would want to read it: a T1D/T2D evidence card pair, a variation table broken out by facility tier and resource status, and — most importantly — a Confounders section listing every approximation and data gap in the demo, kept visible via a sticky banner.

Try Step 6 live →

What to notice first, before anything else on this page: the Confounders section. It's the most useful part of the whole demo, because it tells you exactly which numbers not to over-trust.

Step 7 — Generalization check: did we actually earn the claim?

A written audit (not an interactive tool) that scans the real source code of Steps 2–6 for every place disease type is referenced, and classifies each occurrence as:

Try Step 7 live →

• Generalized — used only to filter, count, or label.
• Special-cased — the logic itself branches differently depending on disease.

Verdict: mostly confirmed, with two flagged exceptions, both isolated to the comparator layer:

1. patientHasPumpEvidence() infers pump-vs-injection from free text in OutcomeNode.reason — a hack that's only meaningful for T1D, because the synthetic corpus never gave delivery modality a first-class field for either disease. Flagged in-UI as an amber assumption note in Steps 4 and 5.
2. Step 5's intervention-timing filter explicitly branches on condition_type because T1D and T2D genuinely have different clinically meaningful timing questions (device choice vs. initiation delay) — there's no single generic field that captures both, so this is an intentional, disease-appropriate exception rather than a gap.

Bonus — Nested Analysis View: everyone's trajectory, one mapNew

Steps 3–6 each show one lens at a time — a toggle, an anchor, a filter, a summary. The Nested Analysis View is a companion page that goes a level further: it takes the same cohort_graph.json and nests every patient's trajectory into a single alluvial-style network, T1D and T2D overlaid on shared nodes.

Every patient — regardless of disease — walks the same six generic checkpoints:

Diagnosis → Presentation → Initial plan → Escalation → Advanced/recurrent → Disposition

Where two or more patients land on the same value at the same checkpoint, their lines are drawn through one shared node instead of parallel ones, so the map visually surfaces convergence (many patients funneling through the same checkpoint — a "hub") and divergence (paths splitting apart) at a glance. Pick any single patient and their path highlights against the rest of the cohort, answering "how is my patient moving relative to everyone else on the same map?"

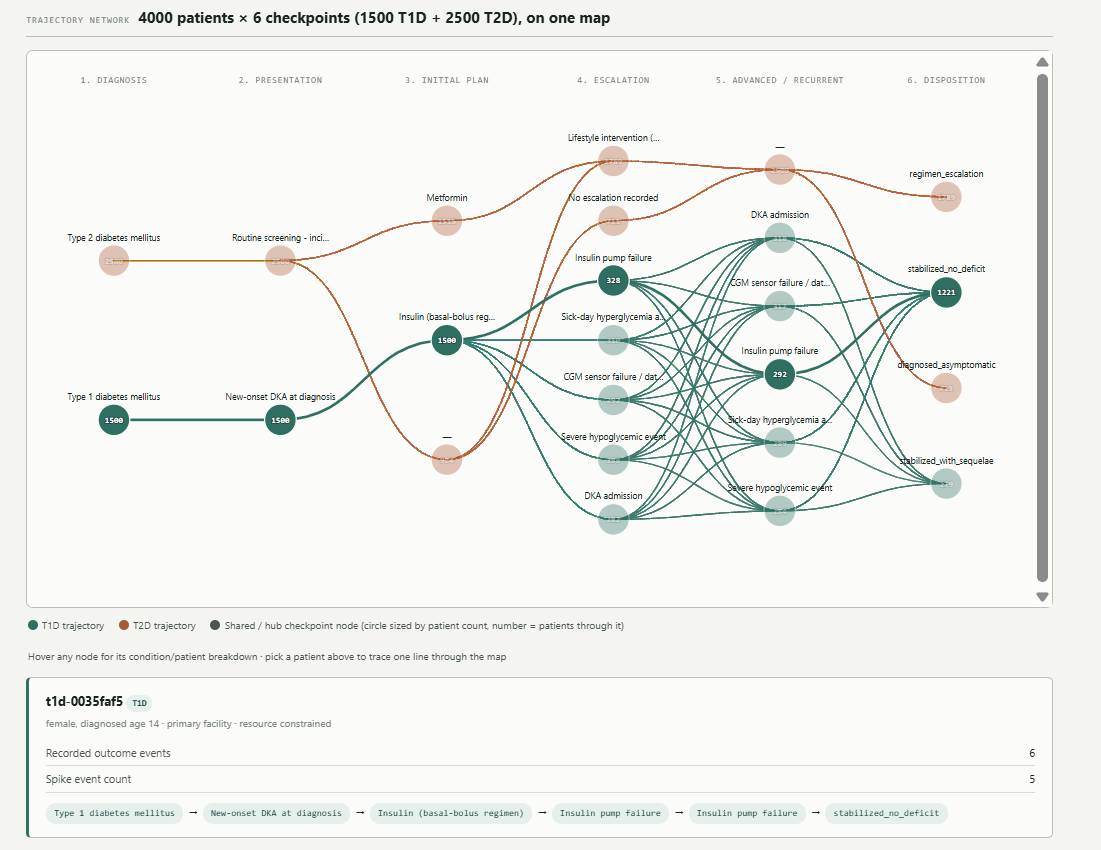

The page ships with a sample cohort but works with any cohort_graph.json you generated yourself in Step 2 — the screenshot above happens to show a larger 4,000-patient example (1,500 T1D + 2,500 T2D), which is exactly the kind of scale where the "one shared map" idea pays off: at that size, no one is reading 4,000 individual trajectory lines one at a time, but the hub nodes still tell you at a glance where the cohort funnels and where it diverges.

What to notice: hover a hub node — the tooltip breaks down how many T1D vs. T2D patients pass through it. In the screenshot, notice how the "Insulin pump failure" and "DKA admission" hubs sit almost entirely in T1D's teal territory, while T2D's rust line stays comparatively sparse through Escalation and Advanced/Recurrent before both conditions converge again at Disposition. Then check the confounder note below the map: T1D patients tend to populate the "Escalation" and "Advanced/Recurrent" columns much more densely than T2D patients do, simply because the synthetic corpus gives T1D more recurring event density (irregular spike events over years) than T2D (which the corpus mostly logs as one or two outcome nodes). The page is explicit that this is a real difference in event density per disease, not a rendering gap — the same generic six-checkpoint structure is used for both, consistent with the Step 7 audit.

Try the Nested Analysis View live →

Why it's worth the extra step: Steps 3–6 teach you to read one patient or one filtered subgroup at a time. The Nested Analysis View teaches a different, complementary skill — reading an entire cohort's shape at once, spotting which checkpoints act as bottlenecks or common outcomes across dozens or thousands of trajectories simultaneously, without losing the ability to drop back down to a single patient's line.

---

8. What a learner or analyst actually gets out of this

Beyond "diabetes has two subtypes that look different," the exercise is really teaching a handful of transferable analytics habits:

• Model the person, not the diagnosis. A four-stage graph (Observations → Diagnosis → Interventions → Outcomes) is disease-agnostic by construction. If you ever need to add a third condition, the question becomes "does it fit this shape?" rather than "how do I bolt on another dashboard?"
• Generic dispatch beats disease-specific branching. Steps 2–6 dispatch on structural node attributes (node_type, term, target, status) instead of on the disease name. That's the difference between code that scales to more diseases and code that grows a new if branch every time.
• Atemporal and temporal views answer different questions. A gestalt snapshot tells you what a patient's profile looks like; a trajectory tells you when things happened relative to diagnosis. Neither replaces the other — this project forces you to hold both.
• Pivoting the anchor, not just filtering, is a distinct analytic move. Re-centering on a diagnosis or an intervention (Step 4) surfaces different patterns than filtering a patient list ever could — it's the same graph, queried differently.
• Comparator design is where clinical nuance actually lives. Step 5 is the one place the demo intentionally treats T1D and T2D differently, and it explains why in the audit rather than hiding it. That's a good model for how real comparator studies should document their assumptions.
• Audit your own generalization claims. Step 7 is arguably the most valuable step for an analyst to internalize: after building something you believe is disease-agnostic, go back and grep your own code for every place the "special" variable appears, and be honest about which occurrences are cosmetic and which are structural.
• List your confounders where the reader can't miss them. Step 6's sticky Confounders banner is a small UX choice with an outsized lesson: the credibility of an analytics view often comes less from the numbers themselves and more from how clearly you disclose their limits.
• Cohort-level shape and single-patient detail are two different reading modes, and you need both. The Nested Analysis View's shared-node convergence pattern shows you something no single-patient trajectory ever could — where the cohort as a whole bottlenecks or fans out — while still letting you trace one patient's line through it. A raw difference in how "busy" one disease's checkpoints look (T1D's recurring events vs. T2D's sparser ones) is itself a finding worth flagging as a data-density confounder, not silently smoothed over.

9. How to try it yourself

1. Open Step 1, generate the synthetic corpus, and download dm_corpus.json.
2. Open Step 2, load that file, build the graph, and download cohort_graph.json.
3. Open Steps 3–6 in any order, loading cohort_graph.json into each via the file-load control.
4. Read Step 7 — it's a written report, no file load needed.
5. Optionally, open the Nested Analysis View and load the same cohort_graph.json (or click "Load sample data" to fetch a hosted example) to see the whole cohort's trajectories on one map.

Everything runs entirely in your browser; nothing is uploaded anywhere, and no real patient data is involved at any stage.

10. Where to go next

• Want the "why" behind the data model — the graph schema, the pivot lenses, the comparator framework? Read the concept article (Part 1).
• Want the engineering detail — what was asked for at each step, what was actually built, and the open issues? Read the build log (Part 2).
• Already have your own cohort_graph.json? Skip straight to Steps 3–6 above and load it into whichever lens interests you.

---

Person-centered clinical analytics — synthetic data only, not for clinical use.
